Configuring Department Node

Use this node to route activities to other departments. Activities can be routed only to departments that are shared with the current department, and that have active transfer workflows. Only such departments are available in the department list. The department node is a terminating node of a workflow and no nodes can be added after it. This node is not available in outbound workflows and inbound social workflows.

To configure a department node:

1. On the Properties page, on the Diagram tab, add the Department node in the Workflow Editor.

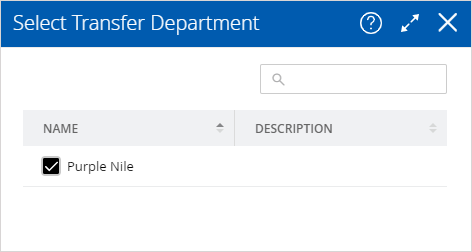

2. In the Select Transfer Department window, select a department to which you want to transfer activities from this workflow. Only the departments that have active Start Workflow - Transfer workflows are available in this list.



3. Click the Done button to close the window.
