Configuring Workflow Node

Use this node to specify the workflow to which activities should get routed after they have been processed by the current workflow. Only workflows of the same type are available for routing activities, except for inbound workflows, where activities can be routed to both inbound and general workflows. Workflow node is a terminating node of a workflow and no nodes can be added after it.

This node is not available in inbound social workflows.

To configure a workflow node:

1. On the Properties page, on the Diagram tab, add the Workflow node in the Workflow Editor.

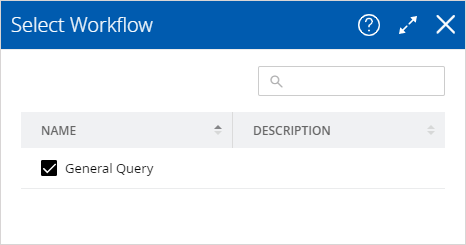

2. In the Select Workflow window, select the workflow to which you want to route activities from the current workflow, for further processing. Only active workflows are available in this list.



3. Click the Done button to close the window.
